STANDARD COUPLER SERIES

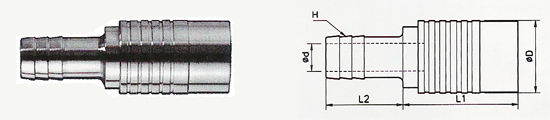

Quick Coupler -
Hose Stem End

 SERIES H d L1 L2 D
QCH 3/8 3/8" 8 37 25 24 o
QCH 1/2 1/2" 9 37 25 24 o

H=Hose Pipe Size

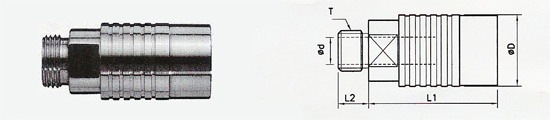

Quick Coupler -
Threaded End

 SERIES T d L1 L2 D
QCH 1/4 1/4" 8 42 9 24 *
QCH 3/8 3/8" 9 42 9 24 *

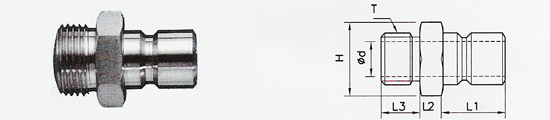

S.S. Nipple

 SERIES T d L1 L2 L3 H
NI 1/4 1/4" BSP 9 16 6 10 16 o
NI 3/8 3/8" BSP 9 16 6 10 19 o
  NI 1/2 1/2" BSP 9 16 6 10 22 o
  NI  1/8 1/8" BSP 6 16 6 10 14 o

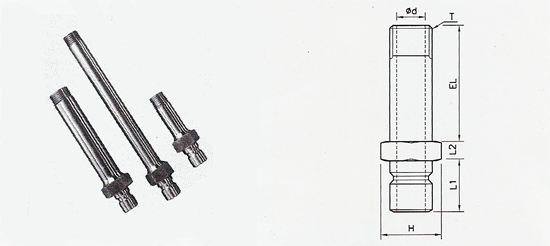

Extra Long
S.S. Nipple

 SERIES EL T d L1 L2 H

EL N-1/4-50
100
150
200

50
100
150
200

 1/4" BSP 8 16 10 19 *

EL N-3/8-50
100
150
200

50
100
150
200

 3/8" BSP 9 16 10 22 *


o Generally available Ex. Stock
* Manufactured & Supplied against order approx. within
   two weeks
   Non standard thread size Nipples can be supplied as per
   your specifications

PERFORMANCE



  Seal Type Code Operation
Temp.		 Working
Pressuer
kg/cm2		 Max.
Pressuer
kg/cm2		 Remarks
Silicon SI +800C 10 15 Standard
Viton VI +1800C 10 15 Optional
