BIG COUPLER SERIES

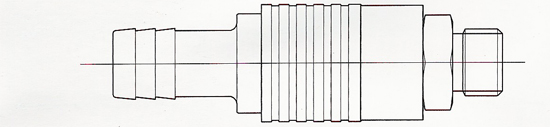

Quick Coupler -
Hose Stem End

 SERIES H d L1 L2 D
QCH 5/8 5/8" 12 39 35 31 *
QCH 3/4 3/4" 15 39 35 31 *

H=Hose Pipe Size

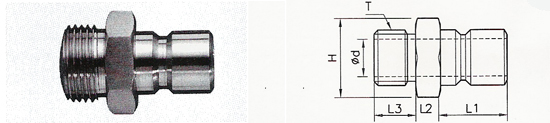

S.S. Nipple

 SERIES T d L1 L2 L3 H
NI BIG 1/2 1/2" BSP 14 20 8 10 22 *
NI BIG 3/4 3/4" BSP 15 20 8 10 32 *


o Generally available Ex. Stock
* Manufactured & Supplied against order approx. within
   two weeks
   Non standard thread size Nipples can be supplied as per
   your specifications

PERFORMANCE



  Seal Type Code Operation
Temp.		 Working
Pressuer
kg/cm2		 Max.
Pressuer
kg/cm2		 Remarks
Silicon SI +800C 10 15 Standard
Viton VI +1800C 10 15 Optional
